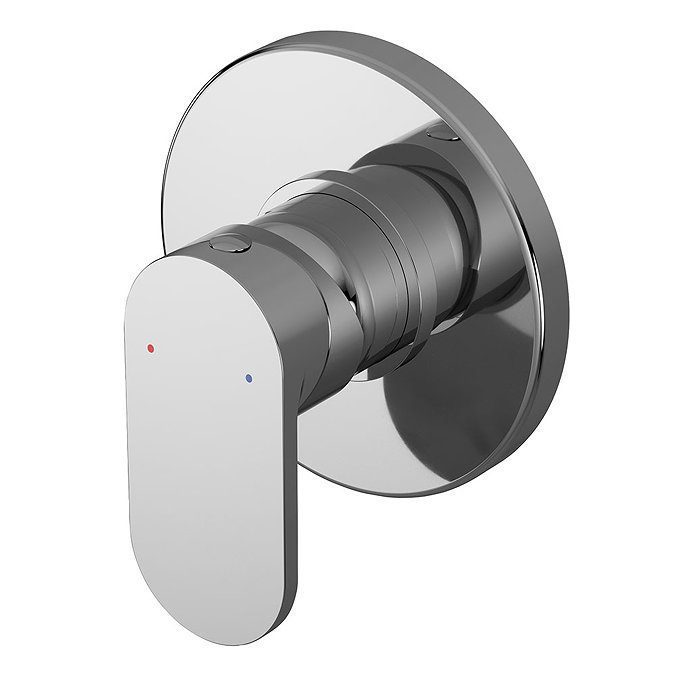

The Nuie Binsey Manual Concealed Shower Valve (BINMV10) offers a clean, modern design with smooth functionality, making it a stylish addition to contemporary bathrooms. Featuring a rounded chrome faceplate and matching lever handle, it delivers a minimalist look with simple, intuitive operation.
This manual concealed valve allows easy control of both temperature and flow through a single lever. Simply lift the handle to start the water flow and move it left or right to adjust the temperature. It is designed to operate one shower or bath outlet, such as a bath spout, slide rail kit, or overhead shower.
Product Details
- Brand: Nuie
- Product Code: BINMV10
- Type: Manual concealed shower valve
- Finish: Chrome
- Material: Brass / ABS construction
- Dimensions: Height 110mm × Width 110mm × Depth 113mm
- Cartridge Type: Single lever cartridge
- Pipe Size: 15mm (1/2″ BSP)
- Outlet: 1
- Installation: Concealed valve
- Operating Pressure: 0.5 bar minimum
- Guarantee: 5 years
- Measurement Note: All dimensions are approximate
Flow Rates
- 0.1 Bar: 3.4 l/min
- 0.5 Bar: 7.9 l/min
- 1 Bar: 11.2 l/min
- 2 Bar: 15.9 l/min
- 3 Bar: 19.5 l/min
